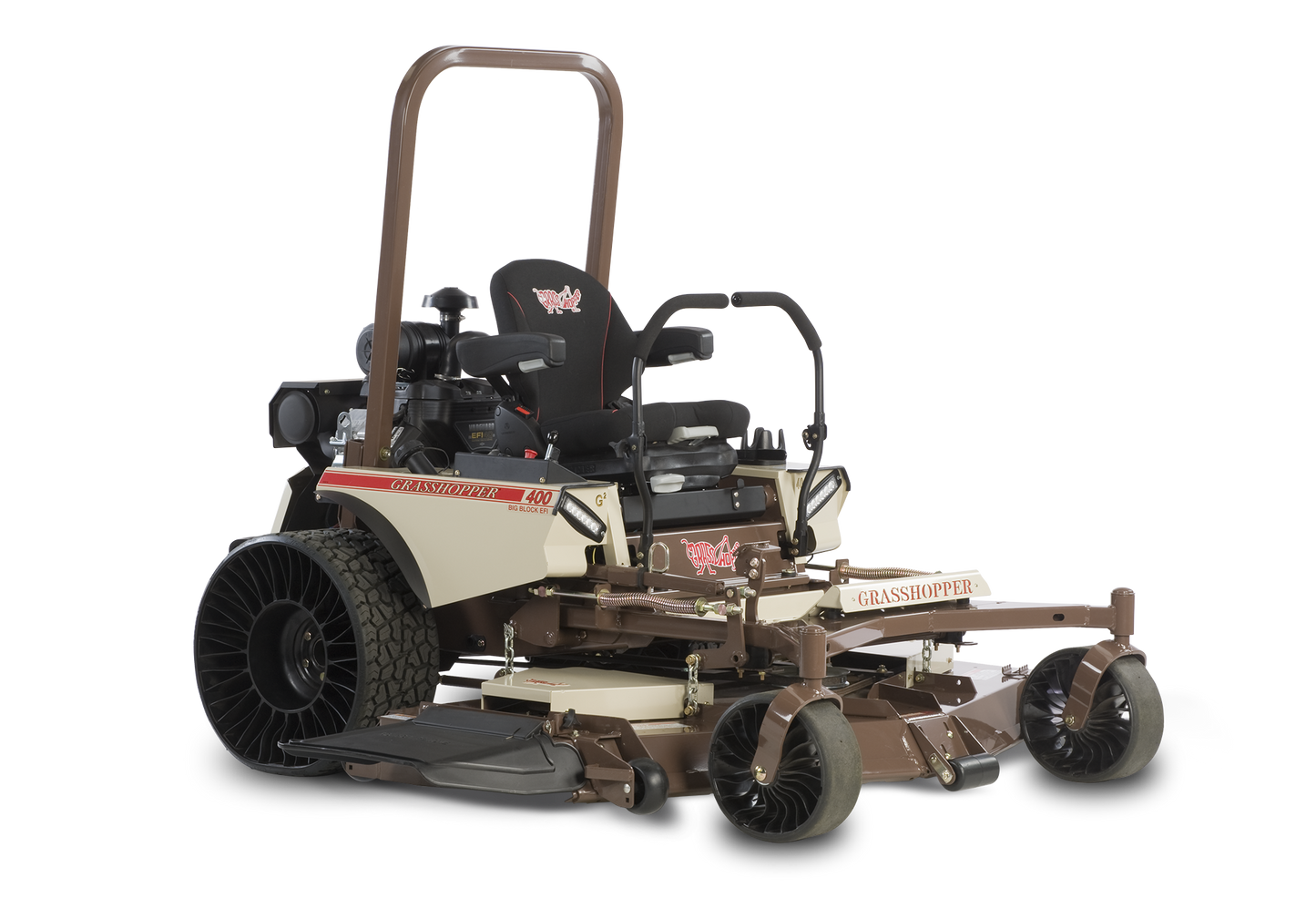

Grasshopper 440
Grasshopper 440
Pickup available at Belcher’s Power Equipment
Usually ready in 24 hours
Fast and powerful to get the job done on time, every time.
The Grasshopper 440 zero-turn lawn mower features the legendary power of a Vanguard Big Block EFI, V-twin with Electronic Throttle Control engine that delivers best-in-class torque and fuel economy. Commercial landscapes depend on Grasshopper mowers for their comfort, performance, productivity, quality and dependability.
Vanguard Big Block EFI Engine
- 40 Horsepower Vanguard Big Block EFI engine with optimized fuel injection and spark timing for added power and fuel economy
- V-twin OHV technology with superior balance, low vibration, lower emissions, improved valve life, better fuel economy and higher HP/Weight
- Industrial grade solenoid shift starter for quick, reliable starts
- Suite of support and diagnostic tools allows for minimizing potential downtime
- Facilitates faster and more precise service
Design-Matched G2 Transmission
- Rugged G2 transmission with auxiliary cooling fans, HydroGear variable displacement 21 cc piston-type pumps and high-torque Parker wheel motors
- CoolFan™ hydro cooling system with 7-micron absolute filter for cooling efficiency
- Delivers smooth response and requires less maintenance, with industry-leading 1,000-hour fluid change interval
Heavy Duty Deck
- Extra-deep, 5.5-inch deck is fabricated from heavy-gauge formed steel with a reinforced anvil edge
- Specially designed cutting chambers enhance airflow for better cut quality
- Deck easily converts from side discharge to optional Down Discharge™ mulching or PowerVac™ collection
- Sentry™ spindles with massive, 8-inch flanges anchored in a 6-bolt pattern, spread the force of impact for greater strength
- Spindle planes are fabricated from double-layered formed steel laminate and combine with the spindles to form a triple-strength deck to keep blades level and deliver a high-quality cut.
- Sentry™ spindle guards shield spindle housing and seal lower bearings from fiber wrap and dirt ingestion
Hydraulic Height Adjustment
- Hydraulic Height Adjustment for MidMount DuraMax™ decks 61-inches and larger allows operators to raise and lower cutting height at infinitely variable settings with toggle switch control. Standard on 400 Series models.
Ultimate Operator Station™
-
.jpg)
The Grammer Premier Suspension Seat is covered with breathable CoolTemp Cordura® fabric which dissipates heat and won’t tear or crack. This seat offers the ultimate in customized operator fit. It adjusts to the individual operator’s weight and slides fore and aft. The backrest tilts and includes adjustable lumbar support. Adjustable, foldable, padded armrests complete the comfort features of this seat. QuikAjust Tilt™ dual levers with 9-inch adjustment and the adjustable seat work together to provide a custom fit for operators of all sizes. -
Operational controls including throttle, choke and angled View-Eze™ console and adjustable cup holder are well positioned for visibility and ease of reach -
.jpg)
One- or two-handed operation with ComfortReach™ adjustable Hydra-Smooth™ dual levers that automatically return to neutral from either forward or reverse position.
Premier Suspension Seat
Premier suspension seat provides the ultimate in operator comfort. Low-profile seat slides fore and aft and includes an integrated shock absorber that manually adjusts to operators between 100 – 300 lbs. Other ergonomic features include a backrest that tilts from -5 degrees to +30 degrees, a lumbar support mechanism, adjustable armrests and a retractable seat belt.
Minimal Maintenance
.jpg)
- Fewer than 10 grease points and easy top-side access to belts and filters
- 1,000-hour transmission fluid change intervals
- Self-tensioning belts minimize cost and labor on routine maintenance
Reduced Maintenance
- Only two Access-Eze™ lubrication points cut maintenance time up to 95%
- Self-tensioning belts minimize cost and labor on routine maintenance
Vigilant Operator Presence System™
.jpg)
- Standard, low profile Roll-over Protection System (ROPS) structure with an adjustable seatbelt
- Dampened steering levers that return to neutral from forward and reverse
- Interlock switches that shut down the engine when the operator leaves the seat while PTO is engaged or levers are in drive position
Rugged Construction
- Robotically-welded steel construction for long-lasting durability
- Centered-bearing design provides greater load-bearing capacity to handle the weight of operator, fuel and high-capacity collector with reserve strength for curb shocks and weight shifts
- Tough-as-nails powder-coated finish is fusion-bonded for chip and rust resistance
LED Work Lights
LED work lights provide improved visibility in low light situations.
QuikAjust Tilt™ Levers
QuikAjust Tilt™ steering levers with "no tools" adjustment provide a 9-inch range for maximum comfort and fit while maintaining natural arm and wrist positions.
Specifications
ENGINE
DURAMAX® DECKS
STARTER & ELECTRICAL SYSTEM
ULTIMATE OPERATOR STATION
TRANSMISSION & STEERING
TIRE SIZES
Drive Wheels - Standard (4-ply rated)
DIMENSIONS
WEIGHT
Warranty
- Commercial Use: 3-year unlimited hours; limited warranty: First two years covering parts and labor; third year covering parts only.
- Residential Use: 4-year or 800-hour (whichever comes first); limited warranty covering parts and labor.
Yellow Beacon Light
Yellow beacon attaches to OPS or ROPS to provide greater visibility in high-traffic areas.
Radiator Cleaning Wand
A multi-channel sprayer that combs water pressure between radiator fins without damage, dislodging packed-in dust and debris that can become an invisible source of engine overheating. Remove and clean radiator screen regularly. A dirty screen will cause the engine to overheat. For use on liquid-cooled models only.
SpeedTrimming™ Roller Kit
The optional SpeedTrimming™ heavy-duty, anti-scalp roller kit for 61" and 72" DuraMax® decks (52" and 61" for Stand On decks) speeds close trimming near buildings, fences retaining walls and other landscaping features. Kits available for both left and right sides of cutting decks.
PowerVac® MidMount Collection System
- PowerVac™ Collection Systems deliver a clean sweep on every pass. Simply adjust your mowing speed to your conditions.
- Quik-D-Tatch® Vac drive can be removed in seconds without tools
Down Discharge™ Mulching Package
The optional Down Discharge™ mulching package with GrassMax™ medium-lift blades cuts and recuts clippings and directs them deep into the grass bed, enriching turf and producing a beautifully manicured cut.
Sunshade Canopy Vinyl
Lightweight, water repellent, UV-resistant vinyl canopy mounts easily to OPS or ROPS to limit exposure to direct sunlight, reducing eye strain and increasing operator comfort.
Custom Cordura® Weather Cover
Weather-resistant, black Cordura fabric cover with embroidered Grasshopper logo keeps seat and engine area protected during storage or between mowings. Slips over ROPS, with Velcro closure to secure the opening.
Edge-EZE™ Edger
Creates clean, sharp turf edges along sidewalks, roadways and driveways, eliminating time-consuming secondary trimming and reducing edging time up to 75 percent compared to hand-held string trimmers and walk-behinds.
4X Rear Discharge Deck
Dedicated 48--inch and larger rear discharge decks throw clippings out back for a smooth cut and no windrowing.
Shielded Sprayer
Accepts 53-inch, 30-gallon shielded sprayer, which features aerodynamically designed shields and fully shielded curtains to contain chemical spray. Four-nozzle spraying chambers apply small droplets that "stick" to vegetation for more coverage per tank using less chemicals.
Wide Seat Conversion Kit
Provides additional seating room for larger operators or to accommodate cell phones or pagers. Requires seat belt extension.
Foldable ROPS
The Foldable ROPS allows the two-post ROPS to be lowered for mowing under low-hanging trees and other overhead obstacles, or for storing and transporting in enclosed trailers with low door clearance. CAUTION: Avoid drop-offs, embankments and steep slopes. Do not allow ROPS to provide a false pretense of security in hazardous areas and avoid questionable conditions. Always wear seatbelt when Foldable ROPS is in up-right position. When Foldable ROPS is down, DO NOT use seat belt, and drive with extra caution.
DuraFlex™ Suspension Forks
Optional DuraFlex™ Suspension Forks absorb the impacts of rough terrain to maintain a level cut, and can be set for use with PowerVac™ collectors.
Extended Steering Levers
Provides an additional two inches of leg clearance.
Sunshade Canopy Aluminum
Diamond-plated aluminum canopy is highly resistant to abrasions. Mounts to ROPS or OPS to increase operator comfort by limiting exposure to direct sunlight and reducing eye strain. Canopy tilts up and down to accommodate operator’s size. Optional cooling fan and LED light kit increase operator comfort and visibility.
Bar-Tread Low-Pressure Tires
Optional low-pressure, high-flotation bar-tread tires flex with the terrain for maximum traction and minimize scuffing caused by wheel spin-out.
Side Discharge Control Kit
Control the discharge of the mower deck to avoid putting clippings in flower beds and on sidewalks
Michelin® X® Tweel® Airless Turf Tire
Optional 24x12.00x12 turf-tread drive tire for MidMount™ models equipped with 61- or 72-inch decks, performs like a pneumatic tire but without the inconvenience and downtime associated with flat tires. Provides consistent hub height to ensure the mower deck produces an even cut and excellent lateral stability and outstanding operator comfort. Not for use with PowerVac Collection Systems.
Michelin® X® Tweel® Airless Front Caster Tire
Smooth tread, 13x6.50x6 caster wheel. Performs like a pneumatic tire, but without the inconvenience and downtime associated with flats. Not for use with PowerVac Collection Systems, or with DuraFlex Suspension Forks.
Share
Fast and powerful to get the job done on time, every time.
The Grasshopper 440 zero-turn lawn mower features the legendary power of a Vanguard Big Block EFI, V-twin with Electronic Throttle Control engine that delivers best-in-class torque and fuel economy. Commercial landscapes depend on Grasshopper mowers for their comfort, performance, productivity, quality and dependability.
- 40 Horsepower Vanguard Big Block EFI engine with optimized fuel injection and spark timing for added power and fuel economy
- V-twin OHV technology with superior balance, low vibration, lower emissions, improved valve life, better fuel economy and higher HP/Weight
- Industrial grade solenoid shift starter for quick, reliable starts
- Suite of support and diagnostic tools allows for minimizing potential downtime
- Facilitates faster and more precise service
- Rugged G2 transmission with auxiliary cooling fans, HydroGear variable displacement 21 cc piston-type pumps and high-torque Parker wheel motors
- CoolFan™ hydro cooling system with 7-micron absolute filter for cooling efficiency
- Delivers smooth response and requires less maintenance, with industry-leading 1,000-hour fluid change interval
- Extra-deep, 5.5-inch deck is fabricated from heavy-gauge formed steel with a reinforced anvil edge
- Specially designed cutting chambers enhance airflow for better cut quality
- Deck easily converts from side discharge to optional Down Discharge™ mulching or PowerVac™ collection
- Sentry™ spindles with massive, 8-inch flanges anchored in a 6-bolt pattern, spread the force of impact for greater strength
- Spindle planes are fabricated from double-layered formed steel laminate and combine with the spindles to form a triple-strength deck to keep blades level and deliver a high-quality cut.
- Sentry™ spindle guards shield spindle housing and seal lower bearings from fiber wrap and dirt ingestion
- Hydraulic Height Adjustment for MidMount DuraMax™ decks 61-inches and larger allows operators to raise and lower cutting height at infinitely variable settings with toggle switch control. Standard on 400 Series models.
-
The Grammer Premier Suspension Seat is covered with breathable CoolTemp Cordura® fabric which dissipates heat and won’t tear or crack. This seat offers the ultimate in customized operator fit. It adjusts to the individual operator’s weight and slides fore and aft. The backrest tilts and includes adjustable lumbar support. Adjustable, foldable, padded armrests complete the comfort features of this seat. QuikAjust Tilt™ dual levers with 9-inch adjustment and the adjustable seat work together to provide a custom fit for operators of all sizes.
-
Operational controls including throttle, choke and angled View-Eze™ console and adjustable cup holder are well positioned for visibility and ease of reach
-
One- or two-handed operation with ComfortReach™ adjustable Hydra-Smooth™ dual levers that automatically return to neutral from either forward or reverse position.
Premier suspension seat provides the ultimate in operator comfort. Low-profile seat slides fore and aft and includes an integrated shock absorber that manually adjusts to operators between 100 – 300 lbs. Other ergonomic features include a backrest that tilts from -5 degrees to +30 degrees, a lumbar support mechanism, adjustable armrests and a retractable seat belt.
- Fewer than 10 grease points and easy top-side access to belts and filters
- 1,000-hour transmission fluid change intervals
- Self-tensioning belts minimize cost and labor on routine maintenance
- Only two Access-Eze™ lubrication points cut maintenance time up to 95%
- Self-tensioning belts minimize cost and labor on routine maintenance
- Standard, low profile Roll-over Protection System (ROPS) structure with an adjustable seatbelt
- Dampened steering levers that return to neutral from forward and reverse
- Interlock switches that shut down the engine when the operator leaves the seat while PTO is engaged or levers are in drive position
- Robotically-welded steel construction for long-lasting durability
- Centered-bearing design provides greater load-bearing capacity to handle the weight of operator, fuel and high-capacity collector with reserve strength for curb shocks and weight shifts
- Tough-as-nails powder-coated finish is fusion-bonded for chip and rust resistance
LED work lights provide improved visibility in low light situations.
QuikAjust Tilt™ steering levers with "no tools" adjustment provide a 9-inch range for maximum comfort and fit while maintaining natural arm and wrist positions.
ENGINE
Type/Horsepower/Cylinders Vanguard Big Block EFI, V-twin with Electronic Throttle ControlDisplacement 60.6 cu. in. (993 cc)
Lubrication System Pressure Lube/Filter
Crankshaft Horizontal
Cooling System Air
Fuel Gasoline - unleaded
Fuel Capacity 12 U.S. Gal. (45.4 l)
Air Cleaner Heavy-duty, remote mounted, cyclonic, dual element air filtration.
Muffler Ultra quiet, single, industrial type
DURAMAX® DECKS
DECK DuraMaxMulching Package # 504569(61), 504571(72)
DURAMAX® DECK SIZE
– 61" Deck * – 72" Deck * CUTTING HEIGHT RANGE 1.0 to 5.0 in. (2.5cm to 12.7 cm)
CONSTRUCTION (Robotic-welded steel) Double-layered 10-gauge plus 7-gauge formed-steel laminated spindle plane 0.313 in (7.95 mm) thick- more than 25% thicker than 0.25 in. (6.35 mm) with 7-gauge skirts for geometric strength. Spindle plane is 0.9 in.(22.86 mm) thick in stress zones. Anvil-edge design with 0.5 in. (12.7 mm) reinforcement on front edge of deck.
BLADES (Tempered, alloy steel) – 61" Deck (3) 21 in. (53.3 cm) – 72" Deck (3) 25 in. (63.5 cm)
SPINDLE ASSEMBLIES Sentry™ Spindle System, 2.5 cm (approx. 1 in.) O.D. shaft. Double bearings greasable from top of deck. Spindle head designed to eliminate fiber wrap. Spindle cones shield housing and lower bearings from fiber wrap and dirt ingestion.
SPINDLE HOUSINGS 8 in. (20.3 cm)-diameter housing with 6-bolt pattern. Machined aluminum housing. Cast iron on 72-inch deck.
BLADE DRIVE Belt drive with single Kevlar V-belt and idler arm tensioning.
STARTER & ELECTRICAL SYSTEM
Battery (maintenance-free) 12 VoltStarter Solenoid shift
Ignition Breakerless
Interlock System Prevents engine start when PTO clutch is engaged or steering levers are in drive position. Allows operator dismount without engine shutdown only when PTO is disengaged and steering levers are locked in neutral.
ULTIMATE OPERATOR STATION
Seat Grammer Premier suspension seat provides the ultimate in operator comfort. Low-profile seat slides fore and aft and includes an integrated shock absorber that manually adjusts to operators between 100 - 300 lbs. Other ergonomic features include a backrest that tilts from -5 degrees to +30 degrees, a lumbar support mechanism, adjustable armrests and a retractable seat belt.Suspension InFrame™ suspension with iso-mounted seat and footrest
Console-mounted Instruments Low engine oil pressure, alternator, temperature and parking brake warning lights, engine temperature and volt gauges, combination electronic fuel gauge/hour meter, two USB charging ports, ignition, work lights, glow plug and push/pull PTO switches.
Work Lights Standard - LED
Hour Meter Standard
TRANSMISSION & STEERING
Type Design-matched G2 hydrostatic system with auxiliary cooling fans, HydroGear variable displacement 21 cc piston-type pumps and high-torque Parker wheel motors.Filtration/Hydro Fluid 7 micron absolute, spin-on / Grasshopper CoolTemp Hydro-Max™ fluid withstands high and low temperature extremes for 1,000-hour change intervals.
Speed 0 - 11.0 mph (0 - 17.7 kph) forward 0 - 6.0 mph (0 - 9.7 kph) reverse
Turning Radius True zero degree, turns within own length with counter-rotating, independently powered drive wheels. Seat is pivot point.
Steering One- or two-hand operation with adjustable HydraSmooth™ QuikAjust Tilt™ dual levers with 9-inch adjustment for a custom fit that automatically return to neutral from either forward or reverse position.
Brakes Dynamic braking through hydrostatic transmission.
Parking Brake Disc parking brakes, one for each drive wheel.
TIRE SIZES
Drive Wheels - Standard (4-ply rated)
– 61" Deck 26x12x12 turf, 6-ply rated – 72" Deck 26x12x12 turf, 6-ply ratedDrive Wheels – Optional (4-ply rated) 24x12.00x12 bar tread, 4-ply rated
Front Wheels – All Models 13x6.50x6; rib tread, pneumatic with greasable, double-sealed bearings to protect from grass wrap.
DIMENSIONS
Height (Seat Back) 47.0 in. (119.4 cm)Height (Seat Cushion) 31.5 in. (80.0 cm)
Height (ROPS) 69.5 in. 176.5 cm)
Length (midmount w/ DuraMax® Deck - Mowing Position) – 61" Deck 86.0 in. (218.4 cm) – 72" Deck 89.5 in. (227.3 cm)
Deck Width (Side Discharge) – 61" Deck 74.5 in. (189.2 cm) – 72" Deck 85.5 in. (227.3 cm)
Deck Width (Mulch*) – 61" Deck 62.5 in.* (158.8 cm) – 72" Deck 73.5 in.* (186.7 cm)
WEIGHT
(Uncrated) – 61" Deck 1320 lbs. (598.7 kg) – 72" Deck 1410 lbs. (639.6 kg)Mulching Package – 61" Deck 36 lbs. (16.3 kg) – 72" Deck 44 lbs. (20.0 kg)
- Commercial Use: 3-year unlimited hours; limited warranty: First two years covering parts and labor; third year covering parts only.
- Residential Use: 4-year or 800-hour (whichever comes first); limited warranty covering parts and labor.
Yellow Beacon Light
Yellow beacon attaches to OPS or ROPS to provide greater visibility in high-traffic areas.
Radiator Cleaning Wand
A multi-channel sprayer that combs water pressure between radiator fins without damage, dislodging packed-in dust and debris that can become an invisible source of engine overheating. Remove and clean radiator screen regularly. A dirty screen will cause the engine to overheat. For use on liquid-cooled models only.
SpeedTrimming™ Roller Kit
The optional SpeedTrimming™ heavy-duty, anti-scalp roller kit for 61" and 72" DuraMax® decks (52" and 61" for Stand On decks) speeds close trimming near buildings, fences retaining walls and other landscaping features. Kits available for both left and right sides of cutting decks.
PowerVac® MidMount Collection System
- PowerVac™ Collection Systems deliver a clean sweep on every pass. Simply adjust your mowing speed to your conditions.
- Quik-D-Tatch® Vac drive can be removed in seconds without tools
Down Discharge™ Mulching Package
The optional Down Discharge™ mulching package with GrassMax™ medium-lift blades cuts and recuts clippings and directs them deep into the grass bed, enriching turf and producing a beautifully manicured cut.
Sunshade Canopy Vinyl
Lightweight, water repellent, UV-resistant vinyl canopy mounts easily to OPS or ROPS to limit exposure to direct sunlight, reducing eye strain and increasing operator comfort.
Custom Cordura® Weather Cover
Weather-resistant, black Cordura fabric cover with embroidered Grasshopper logo keeps seat and engine area protected during storage or between mowings. Slips over ROPS, with Velcro closure to secure the opening.
Edge-EZE™ Edger
Creates clean, sharp turf edges along sidewalks, roadways and driveways, eliminating time-consuming secondary trimming and reducing edging time up to 75 percent compared to hand-held string trimmers and walk-behinds.
4X Rear Discharge Deck
Dedicated 48--inch and larger rear discharge decks throw clippings out back for a smooth cut and no windrowing.
Shielded Sprayer
Accepts 53-inch, 30-gallon shielded sprayer, which features aerodynamically designed shields and fully shielded curtains to contain chemical spray. Four-nozzle spraying chambers apply small droplets that "stick" to vegetation for more coverage per tank using less chemicals.
Wide Seat Conversion Kit
Provides additional seating room for larger operators or to accommodate cell phones or pagers. Requires seat belt extension.
Foldable ROPS
The Foldable ROPS allows the two-post ROPS to be lowered for mowing under low-hanging trees and other overhead obstacles, or for storing and transporting in enclosed trailers with low door clearance. CAUTION: Avoid drop-offs, embankments and steep slopes. Do not allow ROPS to provide a false pretense of security in hazardous areas and avoid questionable conditions. Always wear seatbelt when Foldable ROPS is in up-right position. When Foldable ROPS is down, DO NOT use seat belt, and drive with extra caution.
DuraFlex™ Suspension Forks
Optional DuraFlex™ Suspension Forks absorb the impacts of rough terrain to maintain a level cut, and can be set for use with PowerVac™ collectors.
Extended Steering Levers
Provides an additional two inches of leg clearance.
Sunshade Canopy Aluminum
Diamond-plated aluminum canopy is highly resistant to abrasions. Mounts to ROPS or OPS to increase operator comfort by limiting exposure to direct sunlight and reducing eye strain. Canopy tilts up and down to accommodate operator’s size. Optional cooling fan and LED light kit increase operator comfort and visibility.
Bar-Tread Low-Pressure Tires
Optional low-pressure, high-flotation bar-tread tires flex with the terrain for maximum traction and minimize scuffing caused by wheel spin-out.
Side Discharge Control Kit
Control the discharge of the mower deck to avoid putting clippings in flower beds and on sidewalks
Michelin® X® Tweel® Airless Turf Tire
Optional 24x12.00x12 turf-tread drive tire for MidMount™ models equipped with 61- or 72-inch decks, performs like a pneumatic tire but without the inconvenience and downtime associated with flat tires. Provides consistent hub height to ensure the mower deck produces an even cut and excellent lateral stability and outstanding operator comfort. Not for use with PowerVac Collection Systems.
Michelin® X® Tweel® Airless Front Caster Tire
Smooth tread, 13x6.50x6 caster wheel. Performs like a pneumatic tire, but without the inconvenience and downtime associated with flats. Not for use with PowerVac Collection Systems, or with DuraFlex Suspension Forks.
