Ferris Mowers

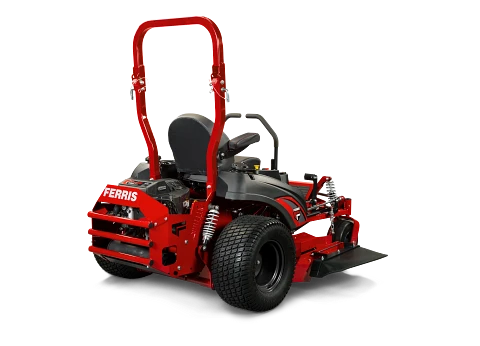

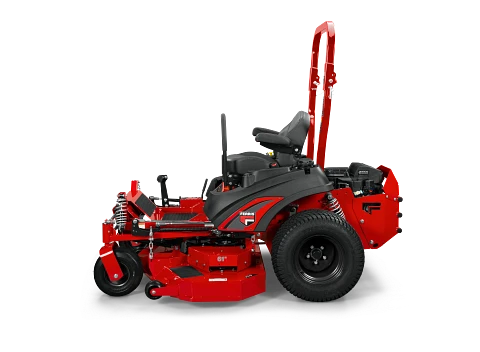

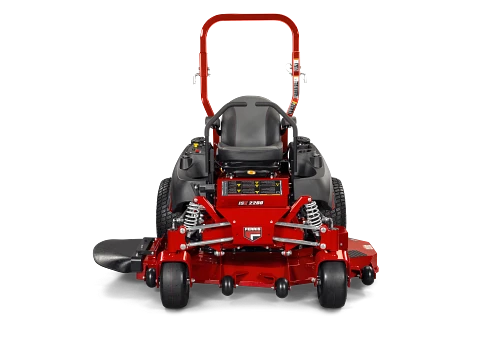

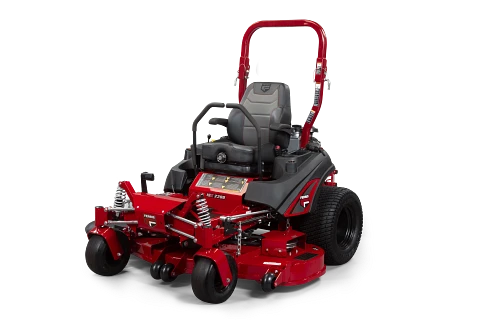

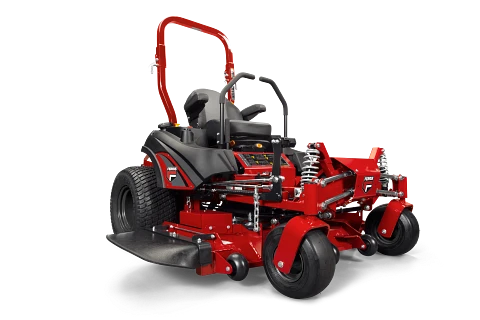

ISX™ 2200
ISX™ 2200
Pickup available at Belcher’s Power Equipment
Usually ready in 24 hours
THE LEADER IN SUSPENSION TECHNOLOGY FOR TURF
Take productivity and comfort up a notch. The ISX™ 2200 boasts our most advanced suspension technology – ForeFront™ Suspension, ensuring operator comfort. A redesigned 2-belt iCD™+ cutting system (select models) delivers unrivaled cut quality and the heavy-duty Hydro-Gear® ZT-4400™ Transaxle drive system provides power and durability to get the job done.
Features
Share
THE LEADER IN SUSPENSION TECHNOLOGY FOR TURF
Take productivity and comfort up a notch. The ISX™ 2200 boasts our most advanced suspension technology – ForeFront™ Suspension, ensuring operator comfort. A redesigned 2-belt iCD™+ cutting system (select models) delivers unrivaled cut quality and the heavy-duty Hydro-Gear® ZT-4400™ Transaxle drive system provides power and durability to get the job done.
Redesigned to deliver next-level performance, increased durability and superior results. Select models.

12V-60V, USB Type A & C located on the dash panel for easy access and charging.

The system utilizes four upper and lower control rods and mower-specific shocks that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.

The EFI-ETC engine with Oil Guard delivers a 500 hour oil change interval and 28 hp*, giving you added cutting performance to excel in thick, dense, and wet conditions. (select models)

Dual-commercial transaxles with 8.3" cooling fans to repel debris.

Foot-operated deck lift, with adjustable pedal, can change cut height in 1/4" increments from 1.5"- 5".

Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

Electric
Cylinders
2
Starter
Electric
Fuel Type
Gasoline
Fuel Tank Capacity (gal)
11
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Deck Size (in)
52
60
Cutting Height (in)
1.5 - 5
Spindles
Cast-iron greaseable
Suspension
ForeFront™ Suspension System
Transmission
Dual, commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans
Deck Construction
iCD™+ Cutting System, 2-Belt
Drive Axles (in)
1.375
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
24 x 9.5 - 12 (52")
24 x 12-12 (60")
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-5
Overall Length (in)
82.5
Overall Width (in) Deflector Down/Deflector Up
67 / 57 (52")
74 / 65 (60")
Dry Weight (lbs)
1232 (52")
1302 (60")
1335 (52" & 60" Vanguard OGS)
Seat Package
Adjustable sport suspension seat w/ armrests (52" Kawasaki)
Premium high-back Suspension Seat with adjustable arm rests, adjustable lumbar and back recline. (52" Vanguard & All 60")
Certified Roll-over Protection System
180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit/adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated Internal transaxle brake
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
