NEW! iCD™+ Cutting System

Redesigned to deliver next-level performance, increased durability and superior results. Select models.

NEW! USB Port

12V-60V, USB Type A & C located on the dash panel for easy access and charging.

ForeFront™ Suspension System

The system utilizes four upper and lower control rods and mower-specific shocks that ensure the front caster bearing remains vertical through the full range of travel. This controlled motion results in a smoother ride, more precise tracing of the terrain and an improved cut.

Vanguard BIG BLOCK™ Engine

The EFI-ETC engine with Oil Guard delivers a 500 hour oil change interval and 28 hp*, giving you added cutting performance to excel in thick, dense, and wet conditions. (select models)

Drive System

Dual, commercial Hydro-Gear^® ZT-5400 Powertrain^® transaxles with 9" cooling fans

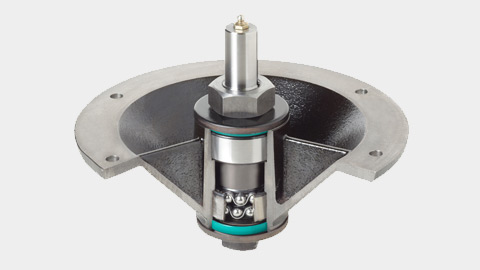

Hercules™ II Cast-Iron

Hercules™ II Cast-Iron; 10" dia. cast-iron with industrial double row angular contact ball bearing with 1 3/16" dia. shaft. Contact ball bearings with 1 3/16" dia. shaft.

Vanguard Electronic Throttle Control

This new technology allows the engine to harness all the power that is generated for more consistent blade tip speed. (select models)



PTO
Electric
Cylinders
2
Starter
Electric
Fuel Type
Gasoline
Fuel Tank Capacity (gal)
11
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Deck Size (in)
60
72
Cutting Height (in)
1.5 - 5
Spindles
Hercules™ II cast-iron
Deck Construction
iCD™+ Cutting System, 2-belt
Suspension
ForeFront™ Suspension System
Transmission
Dual-commercial Hydro-Gear^® ZT-5400 Powertrain^® transaxles with 9" cooling fans
Drive Axles (in)
1.375
Caster Tires (in)
13 x 6.5-6 (Kawasaki)
13 x 6.5-6 flat-free (Vanguard)
Drive Tires (in)
26 x 12-12
Ground Speed-Fwd (mph)
0-12
Ground Speed-Rev (mph)
0-5
Overall Length (in)
84.5
Overall Width (in) Deflector Down/Deflector Up
74/65 (60")
86/74 (72")
Dry Weight (lbs)
1496 (60" Kawasaki)
1579 (72" Kawasaki)
1634 (60" Vanguard)
1717 (72" Vanguard)
Seat Package
Premium high-back suspension seat with adjustable arm rests, adjustable lumbar and back recline
Certified Roll-over Protection System
158° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake / Safety Circuit
Hand operated internal transaxle brake

Warranty (Engine) †
3-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 5 years (60 months) unlimited hours. Belts, tires, brake pads, battery, blades: 90 days.
