Scag Mowers

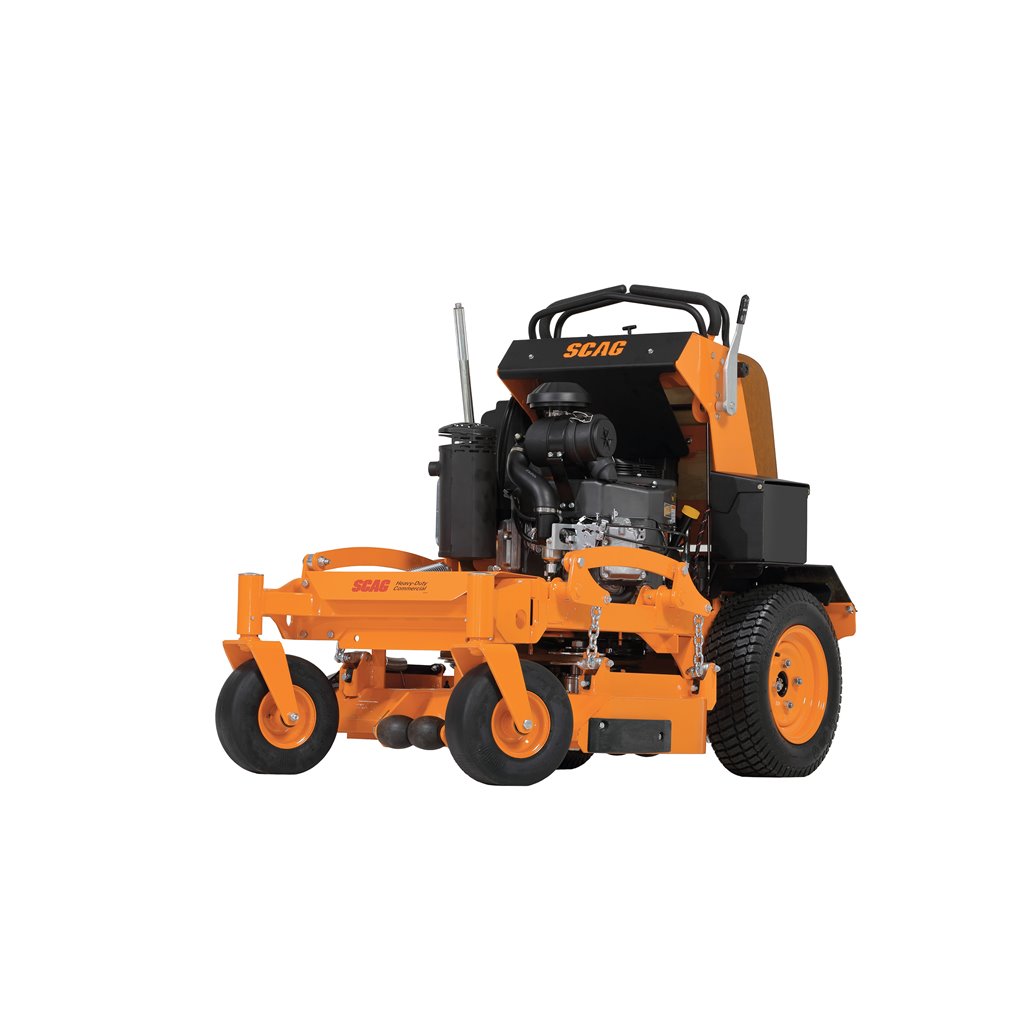

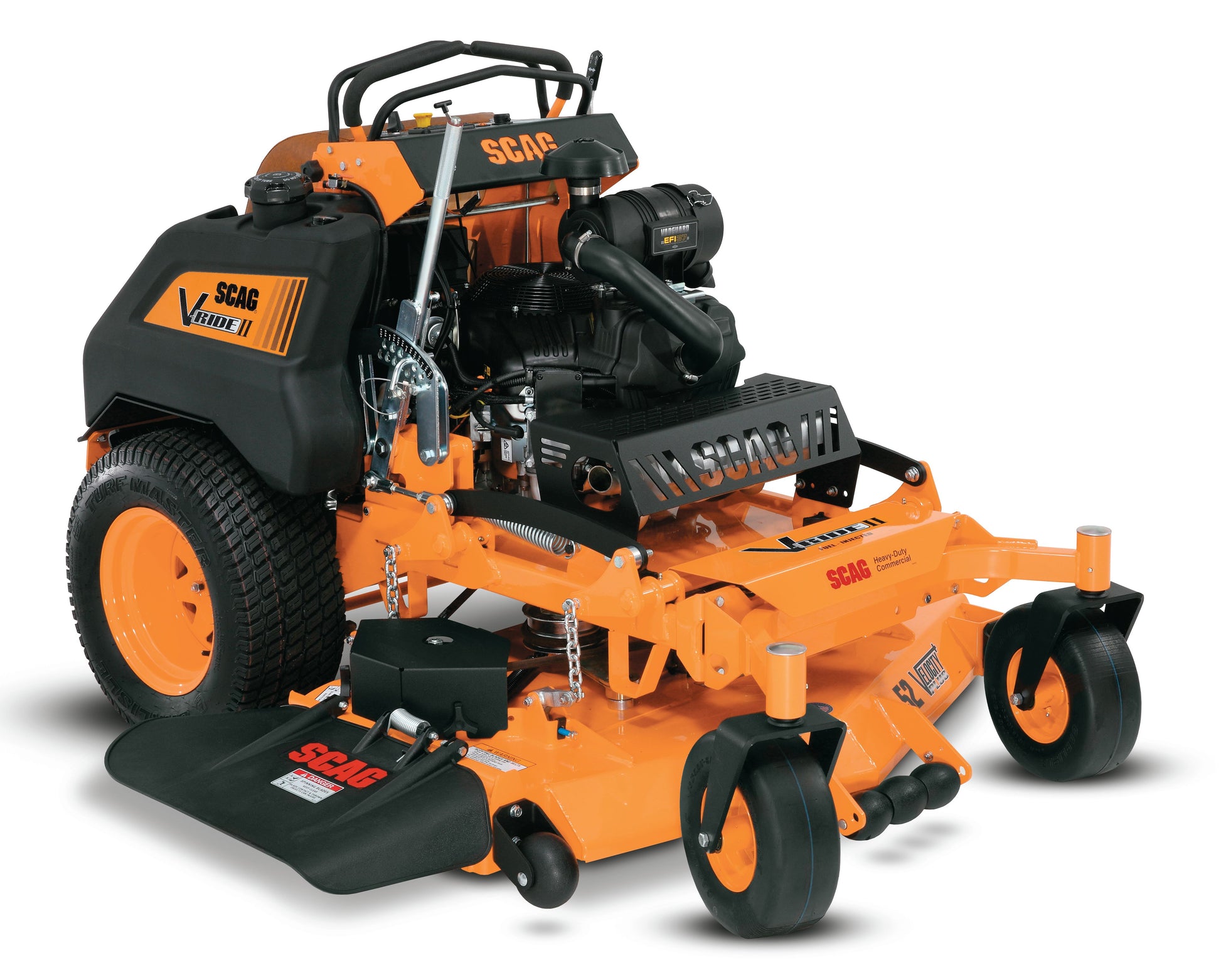

V-RIDE II
V-RIDE II
Regular price
$8,499.00 USD
Regular price
$9,999.00 USD
Sale price
$8,499.00 USD
Unit price
/
per
Pickup available at Belcher’s Power Equipment
Usually ready in 24 hours
GO THE DISTANCE
Featuring a comfortable operator platform with first-class suspension that minimizes fatigue, the V-Ride II™ delivers a natural, intuitive and smooth riding position the entire day. With unrivaled performance, stability and durability, this machine helps keep you in tip-top condition to get the job done day after day, year after year.
Engine & Deck Combinations
| Model | Deck Width | Engine | Horsepower | |
|---|---|---|---|---|
| SVRII-32A-16FX | 32″ | Kawasaki® FX Series | 16 | |
| SVRII-32A-23BV | 32″ | Vanguard™ | 23 | |
| SVRII-36A-19FX | 36″ | Kawasaki® FX Series | 19 | |
| SVRII-36A-23BV | 36″ | Vanguard™ | 23 | |
| SVRII-48V-22FX | 48″ | Kawasaki® FX Series | 22 | |
| SVRII-48V-23CV | 48″ | Kohler® Command PRO® | 23 | |
| SVRII-48V-25CV-EFI | 48″ | Kohler® Command PRO® EFI – electronic fuel injection | 25 | |
| SVRII-52V-25CV-EFI | 52″ | Kohler® Command PRO® EFI – electronic fuel injection | 25 | |
| SVRII-52V-26FT-EFI | 52″ | Kawasaki® FT Series EFI – electronic fuel injection | 26 | |
| SVRII-52V-37BV-EFI | 52″ | Vanguard™ BIG BLOCK™ EFI – electronic fuel injection | 37 | |
| SVRII-61V-26CV-EFI | 61″ | Kohler® Command PRO® EFI – electronic fuel injection | 26 | |
| SVRII-61V-38FX-EFI | 61″ | Kawasaki® FX Series EFI – electronic fuel injection | 38.5 | |
| SVRII-61V-40BV-EFI | 61″ | Vanguard™ BIG BLOCK™ EFI – electronic fuel injection | 40 | |
Specifications
| Total Fuel Capacity | 5 gallons (32″) 6.75 gallons (36″) 8 gallons (48″, 52″, and 61″) |
| Drive Tires | 20″ x 6.5″-10″ (32″) 20″ x 8″-10″ (36″) 24″ x 9.5″-12″ (48″ and 52″) 24″ x 12″-12″ (61″) |
| Caster Tires | 11″ x 4″-5″ (32″ and 36″) 13″ x 5″-6″ (48″ and 52″) 13″ x 6.5″-6″ (61″) |
| Seat | Extra-large comfort cushion |
| Drive System | |
| Drive System Type | Dual Pump and Motor |
| Pumps | Hydro-Gear 10 cc (32″ and 36″) Hydro-Gear 12 cc (48″, 52″, and 61″) |
| Motors | Parker 12 ci (32″ and 36″) Parker 14 ci (48″, 52″ and 61″) |
| Forward Ground Speed | 8.5 mph (32″ and 36″) 10.5 mph (48″, 52″ and 61″) |
| Reverse Ground Speed | 5 mph |
| Parking Brake | Hand lever |
| Deck | |
| Cutting Widths | 32″, 36″, 48″, 52″ and 61″ |
| Type | Advantage (32″ and 36″) Velocity Plus™ (48″, 52″, and 61″) |
| Cutting Height | 1.5″ to 4.5″ in .25″ increments |
| Deck Lift | Hand lever |
| Construction | Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2″ of steel. Reinforcement plates at cutter deck spindles. 32″ model features dual-plate. |
| Spindles | Cast-iron housing with tapered roller bearings. |
| Blade Engagement | Ogura GT2.5 (150 ft lb) – (32″, 36″, 48″ and 52″) Ogura GT3.5 (250 ft lb) – (61″) Adjustable air-gap for extended life. |
Product Dimensions
| Product Dimensions | 32″ V-Ride II | 36″ V-Ride II | 48″ V-Ride II | 52″ V-Ride II | 61″ V-Ride II |
|---|---|---|---|---|---|
| Length | 65.25″ | 65.25″ | 67.5″ | 69.5″ | 72.75″ |
| Tracking Width | 32″ | 36″ | 48″ | 48″ | 48″ |
| Width (chute down) | 43″ | 47.75″ | 61.25″ | 65.25″ | 73.5″ |
| Width (chute in transport position) | 33.75″ | 37.25″ | 49.75″ | 53.75″ | 62.75″ |
| Height | 47″ | 47″ | 47.25″ | 47.25″ | 47.25″ |
| Weight | 818 lb | 832 lb | 1,015 lb | 1,000-1,022 lb | 1,127-1,173 lb |
