Efficient Diesel Power

Efficient Yanmar™ 3-cyinder diesel engine provides lasting power in the most demanding of conditions.

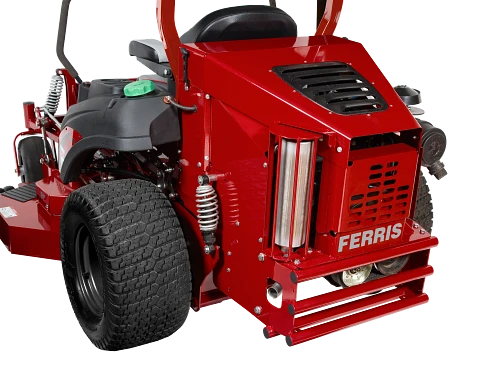

Patented Suspension System

Consists of adjustable rear coil-over-shocks (shown) and front independent adjustable coil-over-shocks.

Accessibility

Quick removal of the floor pan provides convenient access to the top of the deck for easy cleaning and service.

Serviceability

Quick-release latches allow for easy access to engine compartment.

Cast-Iron Spindles

Longer usable life, 1" shaft with top access grease fitting for greaseable dual ball bearings, six-bolt 8" flange design adds strength and greater dispersal of energy to deck assembly.

Foot-Operated Deck Lift

With adjustable pedal, can change cut height in 1/4" increments from 1.75"- 5".

Heavy-Duty Bumper

Heavy-duty integrated rear bumper protects engine compartment.

Smooth Steering

Patented steering system delivers exceptionally smooth performance.

Ride-On Mower Warranties^†

Coil-Over-Shocks and all suspension-related components are covered for 5 years (60 months), for unlimited hours. We are committed to providing performance, productivity and durability.

_{† See operator's manual or dealer for complete warranty details. Refer to engine operator's manual for engine warranty.}

PTO
Electric
Cylinders
3
Starter
Electric
Fuel Type
Diesel
Fuel Tank Capacity (gal)
11
Hour Meter/Instrumentation
Dual-function hour meter, fuel level gauge in each tank
Deck Size (in)
61
Cutting Height (in)
1.75 - 5
Spindles
Cast-iron
Deck Construction
iCD™ Cutting System
Suspension
Independent front control arms with large adjustable coil-over shocks and a rear swing-arm with large adjustable coil-over shocks
Transmission
Dual commercial Hydro-Gear® ZT-4400™ Transaxles with 8.3" cooling fans
Drive Axles (in)
1.375
Caster Tires (in)
13 x 6.5-6
Drive Tires (in)
24 x 12-12
Ground Speed-Fwd (mph)
0-10
Ground Speed-Rev (mph)
0-6
Overall Length (in)
86.25
Overall Width (in) Deflector Down/Deflector Up
76.75 / 63.5
Dry Weight (lbs)
1606
Seat Package
Premium mid-back with adjustable arm rests
Certified Roll-over Protection System
Standard, 180° foldable
Controls / Safety Group
Seat activated engine kill, clutch safety switch, neutral and parking brake safety circuit, adjustable twin steering controls
Parking Brake / Safety Circuit
Hand-operated internal transaxle brake

Warranty (Engine) †
2-Year limited manufacturer's warranty
Warranty (Balance of Machine) †
4-Year limited warranty (48 months) or 500 hours, whichever occurs first. Unlimited hours during the first 2 years (24 months). Coil-over-shocks and all suspension related components are covered for 4 years (48 months) unlimited hours. Coverage on other components varies, please see operator's manual for complete details.
