Grasshopper Mowers

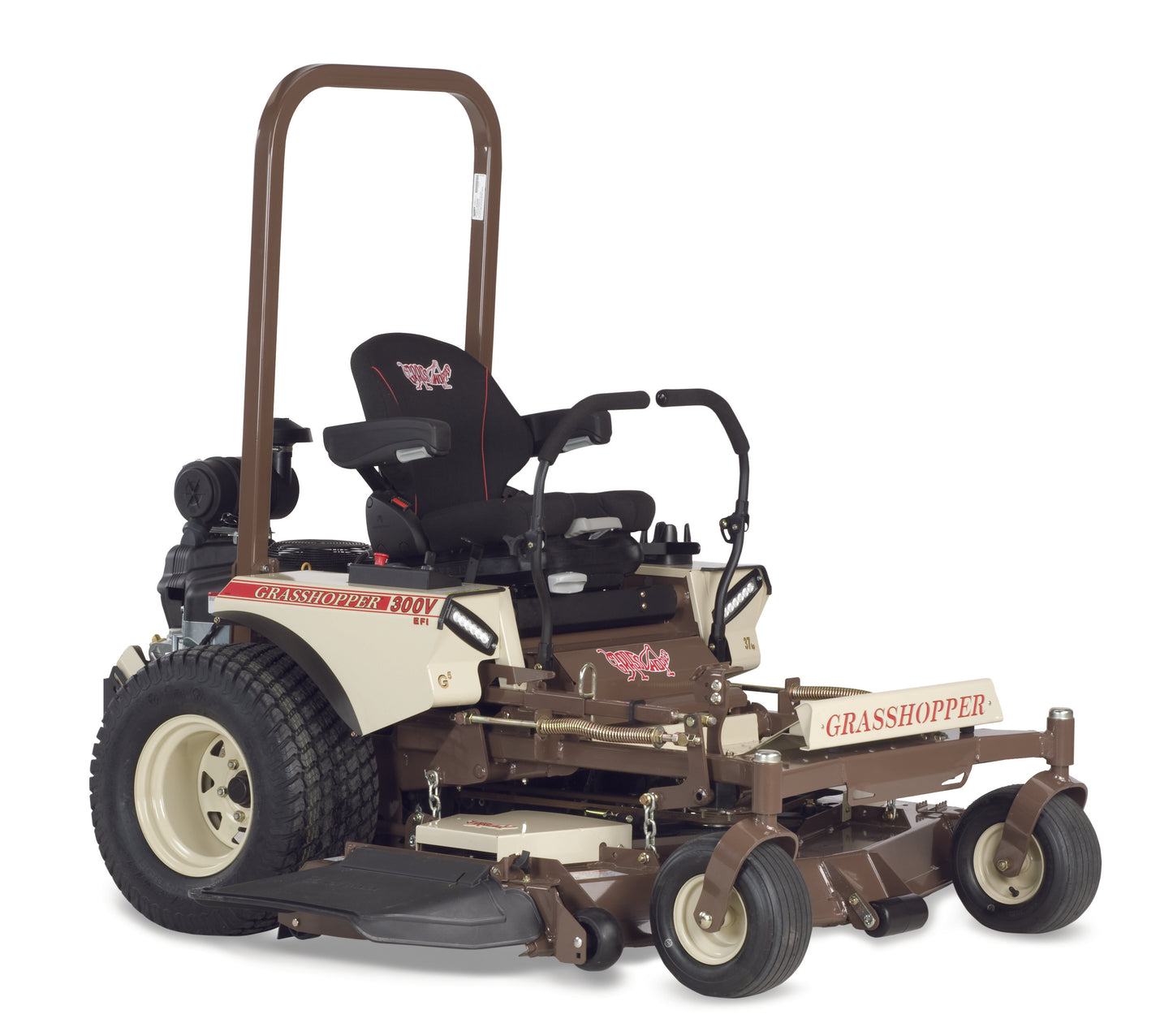

Grasshopper 337G5 EFI

Grasshopper 337G5 EFI

Regular price $13,619.00 USD
Regular price $16,769.00 USD Sale price $13,619.00 USD
Sale Sold out
Deck Options
Collection System

MODEL 337G5 EFI

Powerful performance and fuel economy are available with the 337G5. Equipped with a Briggs & Stratton Vanguard Electronic Fuel-Injection (EFI) vertical shaft, V-twin engine continuously adjusts fuel ratios while using less fuel. EFI technology minimizes fuel-related services issues and offers reduced emissions.

Type/Horsepower/Cylinders
Briggs & Stratton Vanguard Delphi®-based closed-loop Electronic Fuel Injection (EFI) V-Twin
Displacement
60.6 cu. in. (993cc)
Lubrication System
Pressure Lube/Filter
Crankshaft
Vertical
Cooling System
Air
Fuel
Gasoline - unleaded
Fuel Capacity
13 U.S. Gal. (49.2 l)
Optional Fuel Capacity
NA
Air Cleaner
Heavy-duty, cyclonic, remote-mounted engine dual cleaner with replaceable element
Muffler
Ultra quiet, single, industrial type.
DECK
DuraMax
Mulching Package #
504569(61), 504571(72)
DURAMAX® DECK SIZE
– 61" Deck
*
– 72" Deck
*
CUTTING HEIGHT RANGE
1.0 to 5.0 in. (2.5cm to 12.7 cm)
CONSTRUCTION (Robotic-welded steel)
Double-layered 10-gauge plus 7-gauge formed-steel laminated spindle plane 0.313 in (7.95 mm) thick- more than 25% thicker than 0.25 in. (6.35 mm) with 7-gauge skirts for geometric strength. Spindle plane is 0.9 in.(22.86 mm) thick in stress zones. Anvil-edge design with 0.5 in. (12.7 mm) reinforcement on front edge of deck.
BLADES (Tempered, alloy steel)
– 61" Deck
(3) 21 in. (53.3 cm)
– 72" Deck
(3) 25min. (63.5 cm)
SPINDLE ASSEMBLIES
Sentry™ Spindle System, 2.5 cm (approx. 1 in.) O.D. shaft. Double bearings greasable from top of deck. Spindle head designed to eliminate fiber wrap. Spindle cones shield housing and lower bearings from fiber wrap and dirt ingestion.
SPINDLE HOUSINGS
8 in. (20.3 cm)-diameter housing with 6-bolt pattern. Machined aluminum housing. Cast iron on 72-inch deck.
BLADE DRIVE
Belt drive with single Kevlar V-belt and idler arm tensioning.
Battery (maintenance-free)
12 Volt
Starter
Solenoid shift
Ignition
Breakerless
Interlock System
Prevents engine start when PTO clutch is engaged or steering levers are in drive position. Allows operator dismount without engine shutdown only when PTO is disengaged and steering levers are locked in neutral.
Seat
Grammer Premier suspension seat provides the ultimate in operator comfort. Low-profile seat slides fore and aft and includes an integrated shock absorber that manually adjusts to operators between 100 - 300 lbs. Other ergonomic features include a backrest that tilts from -5 degrees to +30 degrees, a lumbar support mechanism, adjustable armrests and a retractable seat belt.
Suspension
InFrame™ suspension with iso-mounted seat and footrest
Console-mounted Instruments
Low engine oil pressure, combination electronic fuel gauge/hour meter, engine code light and parking brake warning lights, ignition and push/pull PTO switches.
Work Lights
Optional - LED
Hour Meter
Combination electronic fuel gauge/hour meter
Type
Heavy-duty Hydro-Gear ZT5400 hydrostatic transmissions with cooling fans, integrated transaxles with 16cc piston pumps and 21cc piston motors, gear reduction, internal disc brakes, and 1-3/8-inch axles
Filtration/Hydro Fluid
Self-contained fluid and internal filtration. CoolTemp HydroMax® fluid withstands high and low temperature extremes for extended service intervals after 100-hour break-in oil change.
Speed
0 - 10.5 mph (0 - 16.9 kph) forward 0 - 6.0 mph (0 - 9.7 kph) reverse
Turning Radius
True zero degree, turns within own length with counter-rotating, independently powered drive wheels.
Steering
One- or two-hand operation with adjustable HydraSmooth™ QuikAjust Tilt™ dual levers with 9-inch adjustment for a custom fit that automatically return to neutral from either forward or reverse position.
Brakes
Dynamic braking through hydrostatic transmission.
Parking Brake
Internal disc brake in transmission.
Attachment Drive
NA
Drive Wheels - Standard (6-ply rated)
– 61" Deck
26x12.00x12 turf, 6-ply rated
– 72" Deck
26x12.00x12 turf, 6-ply rated
Drive Wheels – Optional (4-ply rated)
24x12.00x12 bar tread, 4-ply rated
Front Wheels – All Models
13x6.50x6; rib tread, pneumatic with greasable, double-sealed bearings to protect from grass wrap.
Height (Seat Back)
49.0 in. (124.5 cm)
Height (Seat Cushion)
35.0 in (88.9 cm)
Height (ROPS)
72.0 in (182.9 cm)
Length (midmount w/ DuraMax® Deck - Mowing Position)
– 61" Deck
85.0 in. (215.9 cm)
– 72" Deck
89.0 in (226.9 cm)
Deck Width (Side Discharge)
– 61" Deck
74.5 in. (189.2 cm)
– 72" Deck
82.5 in. (217.7 cm)
Deck Width (Mulch*)
– 61" Deck
62.5 in.* (158.8 cm)
– 72" Deck
73.5 in. (186.7 cm)
(Uncrated)
– 61" Deck
1260 lbs (571.2 kg)
– 72" Deck
1340 lbs. (607.8 kg)
Mulching Package
– 61" Deck
36 lbs. (16.3 kg)
– 72" Deck
44 lbs. (20.0 kg)
