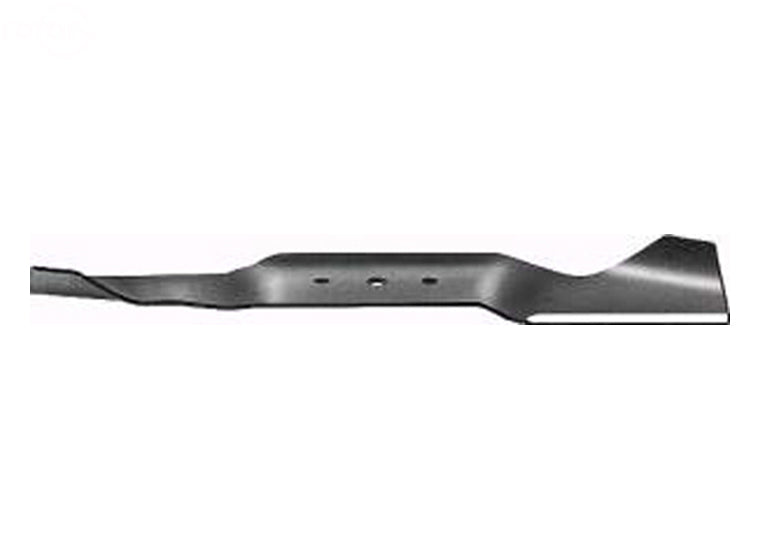

# 6003 BLADE 16-1/4"X 13/32" MTD

Requires (2) 6003 & (1) 6019 for 46" cut MTD; Deep Deck, 800 Series.

Replaces:

• MTD 742-0506A
• MTD 742-0487A
• MTD 942-0506
• MTD 942-0487
• MTD 742-0487
• MTD 942-0487A
• WINDSOR 50-1965

Dimensions:

• CASE QTY: 1600
• CASES PER PALLET: 1
• HOLE/INNER DIAMETER: 13/16"
• LENGTH: 16-1/4"
• WIDTH: 3"
• THICKNESS: 0.158"
• CUT DIRECTION: CLOCKWISE (RIGHT)
• CENTER TO CENTER (MOUNTING HOLES): 2-1/2"
• DIAMETER OF OUTSIDE HOLES: 5/16"

Minimum Order Quantity: 1

Cross Reference

• MTD: 742-0487, 742-0487A, 742-0506A, 942-0487, 942-0487A, 942-0506
• NHC: MA2401
• OREGON: 98-487
• PRIME LINE: 7-04566
• STENS: 335-117, 335-919
• SUNBELT: B1SB6003
• WINDSOR: 50-1965

Fits

• MTD: 131-312D000, 131-312D033, 131-313D000, 131-314D000, 131-315D000, 131-316D000, 131-317D000, 131-318D000, 131-319D000, 131-320D000, 131-321D000, 131-322D000, 131-323D000, 131-324D000, 131-325D000, 131-326D000, 131-327D000, 131-328D000, 131-329D000, 131-330D000, 131-331D000, 131-332D000, 131-333D000, 131-334D000, 131-335D000, 131-336D000, 131-337D000, 131-338D000, 131-339D000, 131-340D000, 131-341D000, 131-342D000, 131-343D000, 131-344D000, 131-345D000, 131-346D000, 131-347D000, 131-348D000, 131-349D000, 131-350D000, 131-351D000, 131-352D000, 131-353D000, 131-354D000, 131-355D000, 131-356D000, 131-357D000, 132-312D000, 132-312D033, 132-322D054, 132-332D000, Central Park Mdl 131-312D046, Coast To Coast Mdl 131-312D054/481-1972, Grasshandler Mdl 850-0274/1058D, Mastercut Mdl 131-317D701
