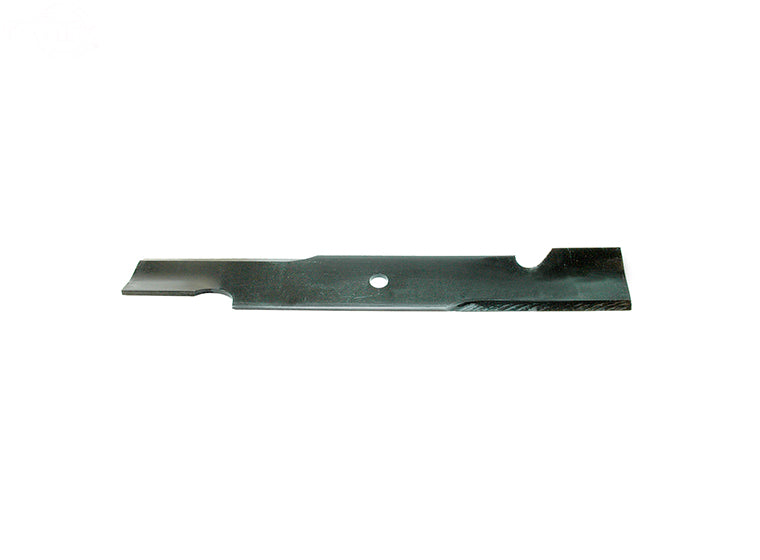

# 3403 BLADE 16-1/2" X 5/8" SCAG

Blade replaces Scag 48110, A48110, 481706, 482461, 482877. Requires (3) for 48" cut Encore, Great Dane, Lesco & Scag, (2) for 32" cut Scag. Also replaces Bad Boy 038-5350-00 for 50" Deck.

Replaces:

• BAD BOY 038-5350-00
• ENCORE 483035
• GRAVELY GDU10230
• GRAVELY 00878100
• GREAT DANE D18086
• HUSTLER 601123
• HUSTLER 606252
• HUSTLER 795757
• HUSTLER 601014
• LESCO 021871
• SCAG A48110
• SCAG 48110
• SCAG 482877
• SCAG 481706
• SCAG 482461
• TORO 133-2137
• TORO 107-3196-03
• WINDSOR 50-1905
• WINDSOR 50-1940
• WINDSOR 50-1900
• WRIGHT 71440002

Dimensions:

• CASE QTY: 1500
• CASES PER PALLET: 1
• HOLE/INNER DIAMETER: 5/8 "
• LENGTH: 16-1/2"
• WIDTH: 2-1/2"
• THICKNESS: 0.204"
• CUT DIRECTION: CLOCKWISE (RIGHT)

Minimum Order Quantity: 1

Cross Reference

• BAD BOY: 038-5350-00
• ENCORE: 483035
• GRAVELY: 00878100, GDU10230
• GREAT DANE: D18086
• HUSTLER: 601014, 601123, 606252, 795757
• LESCO: 021871
• NHC: 212-0053, 212-7301, SC2800
• OREGON: 91-266, 91-620, 94-125
• PRIME LINE: 7-04763, 7-04979, 7-06325, 7-06373
• SCAG: 48110, 481706, 482461, 482877, A48110
• STENS: 300-914, 301-005, 302-016, 310-003, 310-045, 310-177, 310-197, 315-868, 330-696, 340-109, 340-172, 340-612, 340-874, 302216
• SUNBELT: B1SB3403
• TORO: 107-3196-03, 133-2137
• WINDSOR: 50-1900, 50-1905, 50-1940
• WRIGHT: 71440002

Fits

• ARIENS: 2 for 32" cut; 3 for 48" cut
• ENCORE: X-Treme
• SCAG: STC, STC for 48", SW FOR 32", SWZ, SWZ for 48", SWZU, SWZU for 48"
• SNAPPER_KEES: CZT19480KWV, CZT19481KWV, HZT21480BV, HZT21481BV, LT180H48FBV2, LT180H48HBV2
