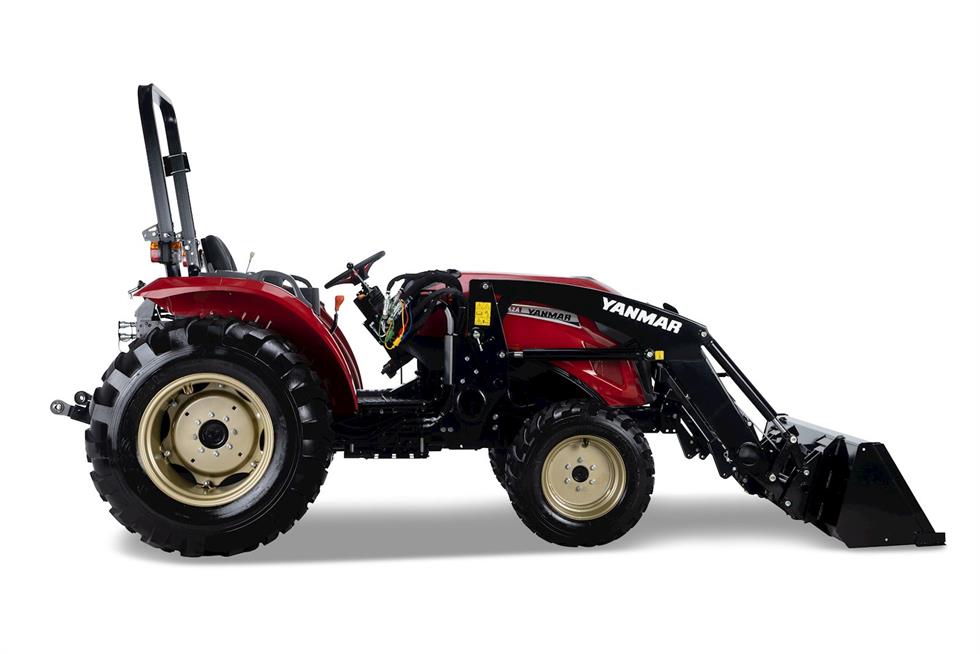

2023 YANMAR YM342 w/ LOADER
2023 YANMAR YM342 w/ LOADER
Old school work ethic with new school technology.
The original YM series tractors were referred to as “the over achievers” – and with features like 540 economy PTO, 2,500lb lift capacity, and Yanmar’s proven performance link technology – that legacy continues with the YM3.
The YM342 is equipped with a 41 horsepower engine and a maximum traveling speed of up to 17.7mph
*Price listed includes $3,000 Cash Rebate - Low Rate Financing Available
Features
- Synchronized Shuttle Shift
- Single Rear Remote
- 15.3" Ground Clearance
- Wide 72" Bucket
- Convenience Designed In
- Versatility with Attachments
- Flat iSO Mount Floorboard with Anti-Slip Step
- More Power on the Ground
- Comfort and Efficiency Built Right In
More Power On The Ground:
Synchronized shuttle shift allows you to quickly change between forward and reverse allowing effortless loader work. Suitable for grading, material handling, and moving bales of hay. Gear Drive transmission combines with Yanmar diesel engine to give you high torque and more usable PTO Power.
Comfort:
The YM3 series tractors are designed with comfort, efficiency, and versatility. Designed with an adjustable suspension seat and a flat isolation mounted floorboard design for the maximum comfort during operation.
Versatility With Attachments:
Compatible with both category 1 and category 2 attachments. A telescopic hitch arm provides ease and convenience with small adjustments for quick attachment mounting. Heavy duty, pin style sway bars keep your attachment securely in place.
Convenience Designed-In:
The lower fuel tank positioning allows for quick and easy fueling. A larger fuel capacity increases productivity in the field and keeps you working longer between stops.
Specifications
Model | YM342 | |||
---|---|---|---|---|
Gross Power: EPA Regulation HP (kW) | 41.4 HP | |||
Overall length (with 3PH and R4 Tires) | 133.6 (2190) | |||
Overall Width (with R4 Tires) | 70.9 (1801) | |||
Overall Height (with Roll-Over Protection, and R4 tires) | 98.0 (2490) | |||
Transmission | Synchronized Shuttle Shift | |||
Drive Type | ||||
Lift Capacity (Pivot Pin) lb. (kg) | 2500 | |||
Bucket Width in. (mm) | 72” (1829mm) | |||
PTO Power HP (kW) | 31.0 HP | |||
Rear PTO Speed/Engine RPM | 540/540E | |||
Mid PTO Speed/Engine RPM | ||||
Wheel Base | 74.8" | |||
Front Tires (with R4) | 10.0" - 16.5" | |||
Rear Tires (with R4) | 17.5" L - 24" | |||
3-Point Hitch | Category 1 & 2 |
