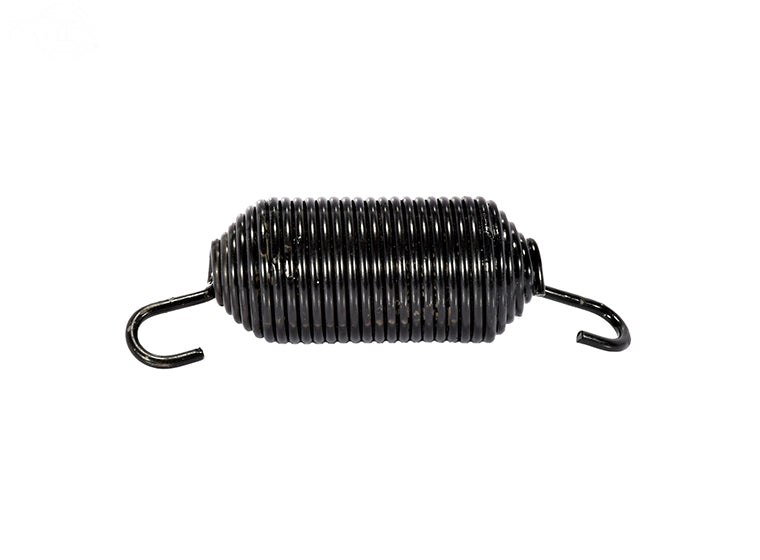

# 15308 PUMP BELT TENSIONER SPRING FOR SCAG

Pump Belt Tensioner Spring replaces Scag 483087. Fits Freedom Z models SFZ36, 48, 52 and 61, SMTC-48V, SMTC-52A, SMWC-52A and SMWC-52V, SMWC-61A, SMWC-61V, SPZ52 and 61 Patriot, STC-48A and STC-48V.

Replaces:

• SCAG 483087

Dimensions:

• CASE QTY: 25
• CASES PER PALLET: 100
• LENGTH: 6.50"
• WIRE DIAMETER: 0.180"
• COIL LENGTH: 4.18"
• COIL DIAMETER: 1.750"

Minimum Order Quantity: 1

Cross Reference

• SCAG: 483087

Fits

• SCAG: 61 PATRIOT, SFZ36, SFZ48, SFZ61, SMTC-48V, SMTC-52A, SMWC-52A, SMWC-52V, SMWC-61A, SMWC-61V, SPZ52, STC48V, STC-48A
