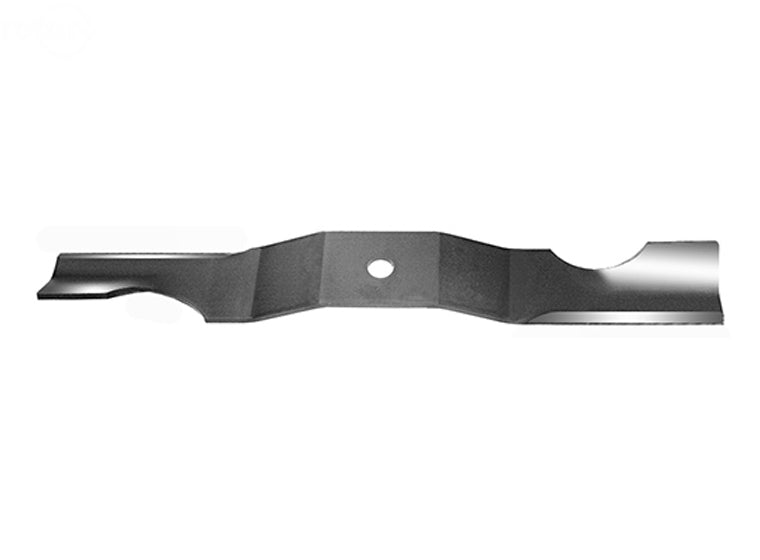

# 13177 BLADE 17.35" X 5/8" ARIENS

Blade replaces Ariens/Gravely 03971900, 03746500 (03746500 old #) Blade for 50" Zoom & ZT50. Without Air Lift Holes.

Replaces:

• ARIENS 03971900
• ARIENS 03746500
• GRAVELY 03971900
• GRAVELY 03746500

Dimensions:

• CASE QTY: 520
• CASES PER PALLET: 1
• HOLE/INNER DIAMETER: 5/8 "
• LENGTH: 17-11/32"
• WIDTH: 2-1/4"
• THICKNESS: 0.187"

Minimum Order Quantity: 1

Cross Reference

• ARIENS: 03746500, 03971900
• GRAVELY: 03746500, 03971900
• NHC: GR2003
• STENS: 355-608

Fits

• ARIENS: 911413 WAW 34, 915131 Zoom 1334 13hp B&S 34", 915141 B&S 42", 915143 Kawasaki 50", 915151 B&S 34", 915155 B&S 42", 915157 B&S Zoom 34, 915157 Zoom 34, 915159 Zoom 42, 915161 Zoom 50, 915169 Zoom 34 CARB, 915171 Zoom 42 CARB, ZT 50, Zoom
• GRAVELY: 915140 ZT 34, 915142 ZT 42, 915144 ZT 50, 915146 ZT 34, 915148 ZT 42, 915150 ZT 50, 915168 ZT 34
