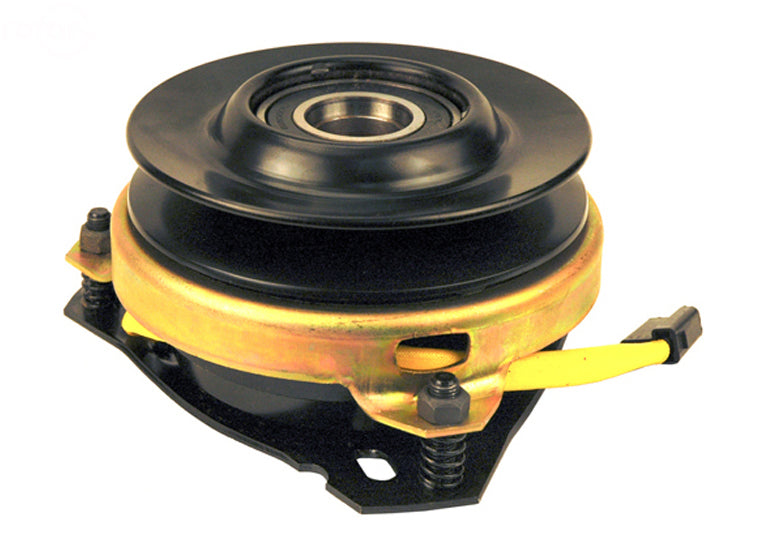

# 12227 ELECTRIC PTO CLUTCH FOR CUB CADET

Electric Clutch replaces Cub Cadet 717-3497/917-3497, Jacobsen 990947, Toro 99-8012, Simplicity 1703816 & Snapper 16343. 1" ID X 5 1/4" Pulley Uses 5/8" Belt. Warner 5215-59. Shaft Size: 1", Pulley Dia: 5.345", 1/2" Belt.

Replaces:

• AYP/ROPER/SEARS 19982
• AYP/ROPER/SEARS 16343
• CUB CADET 717-3497
• CUB CADET 917-3497
• MTD 1755341P
• SIMPLICITY/ALLIS CHA 1703816
• SIMPLICITY/ALLIS CHA 1703816SM
• SNAPPER/KEES 7053679
• SNAPPER/KEES 16343
• SNAPPER/KEES 7053679YP
• SNAPPER/KEES 19982
• TORO 99-8012
• TORO 11346
• TORO 113426
• WARNER 5215-59

Dimensions:

• CASE QTY: 1
• HEIGHT: 3.500"
• CASES PER PALLET: 72
• HOLE/INNER DIAMETER: 1"
• PULLEY: 5.345"
• WIRE LENGTH: 10.75"
• RESISTANCE: 2.84\u03a9
• ROTATION: COUNTER CLOCKWISE (LEFT)

Minimum Order Quantity: 1

Cross Reference

• AGCO: 1703816SM
• AYP_ROPER_SEARS: 16343, 19982
• CRAFTSMAN: 16343, 19982, 1703816SM
• CUB CADET: 717-3497, 917-3497
• MTD: 1755341P
• NHC: 274-2807
• OREGON: 33-128
• RATIOPARTS: 030-788
• SIMPLICITY_ALLIS CHA: 1703816, 1703816SM
• SNAPPER_KEES: 16343, 19982, 7053679, 7053679YP
• STENS: 255-547
• TORO: 99-8012, 11346, 113426
• WAIGLOBAL: 19-185
• WARNER: 5215-59
