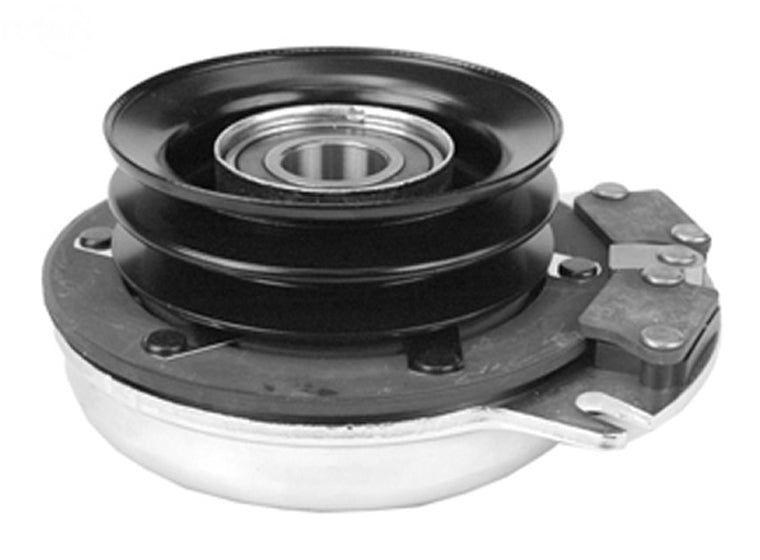

# 12114 ELECTRIC PTO CLUTCH GRASSHOPPER

Electric PTO Clutch replaces Grasshopper 606242 & 388769. Warner 5218-214, 5218-67 & 5217-147. Fits virtually All 700 series mowers. Shaft Size: 1-1/8 inch. Belt Type: 2A Pulley Diameter: 4.875 inch,(4.750) Torque (ft./lb.): 200, Rotation: cw-rev, Connector: integral

Replaces:

• ARIENS 9407700
• EXMARK E653292
• EXMARK E653048
• EXMARK 653292
• EXMARK 653048
• EXMARK 109-9276
• EXMARK 109-2916
• EXMARK 105-3630
• EXMARK 103-0690
• EXMARK 1-653292
• EXMARK 1-653048
• GRASSHOPPER 388769
• GRASSHOPPER 606242
• GRASSHOPPER 388767
• MASSEY FERGUSON 7058925
• MASSEY FERGUSON 58925
• McCULLOCH 7058925
• McCULLOCH 58925
• SNAPPER/KEES 7058295
• SNAPPER/KEES 7058295YP
• SNAPPER/KEES 7058925YP
• SNAPPER/KEES 7058925
• SNAPPER/KEES 58925
• SNAPPER/KEES 35520
• TORO E653292
• TORO E653048
• TORO 653292
• TORO 653048
• TORO 109-9276
• TORO 109-2916
• TORO 105-3630
• TORO 103-0690
• TORO 1-653292
• TORO 1-653048
• WARNER 5218-67
• WARNER 5218-214
• WARNER 5217-147
• WARNER 5218-80C
• WARNER 5218-80
• WARNER 5218-68
• WARNER 5218-58
• WARNER 5218-44
• WARNER 5218-26
• WARNER 5218-257
• WARNER 5218-226
• WARNER 5218-215
• WARNER 5218-170
• WARNER 5218-147
• WOODS/HESSTON 74075
• WOODS/HESSTON 73558
• WOODS/HESSTON 7058925
• WOODS/HESSTON 606242
• WOODS/HESSTON 58925
• WOODS/HESSTON 388769
• WOODS/HESSTON 388767
• WRIGHT 71410013

Dimensions:

• CASE QTY: 1
• CASES PER PALLET: 72
• HOLE/INNER DIAMETER: 1 1/8"
• PULLEY: 4.875"
• RESISTANCE: 1.84\u03a9
• ROTATION: CLOCKWISE (RIGHT)
• TORQUE: 200lb-ft

Minimum Order Quantity: 1

Cross Reference

• ARIENS: 9407700
• CRAFTSMAN: 35520, 58925, 7058925, 7058925YP
• EUROGARDENF1: 2304063
• EXMARK: 1-653048, 1-653292, 103-0690, 105-3630, 109-2916, 109-9276, 653048, 653292, E653048, E653292
• GRASSHOPPER: 388767, 388769, 606242
• KEES: 7058925
• MASSEY FERGUSON: 58925, 7058925
• MCCULLOCH: 58925, 7058925
• NHC: 274-2165, 274-2905
• OREGON: 33-121, 33-137, 33-153, 33-156, 33-187
• PRIME LINE: 7-06270, 7-06279, 7-06283
• RATIOPARTS: 030-796
• SNAPPER_KEES: 35520, 58925, 7058295, 7058295YP, 7058925, 7058925YP
• STENS: 255-335, 255-335X, 255-463, 255-487, 255-559, 255-560, 255-895, X0043, X0043-K
• SUNBELT: A-B1XT0017, A-B1XT0043, B1EC41, B1EC49, B1EC114, B1XT0017, B1XT0235
• TORO: 1-653048, 1-653292, 103-0690, 105-3630, 109-2916, 109-9276, 653048, 653292, E653048, E653292
• WAIGLOBAL: 19-043
• WARNER: 5217-147, 5218-26, 5218-44, 5218-58, 5218-67, 5218-68, 5218-80, 5218-80C, 5218-147, 5218-170, 5218-214, 5218-215, 5218-226, 5218-257
• WOODS_HESSTON: 58925, 73558, 74075, 388767, 388769, 606242, 7058925
• WRIGHT: 71410013
• XTREME: X0043
